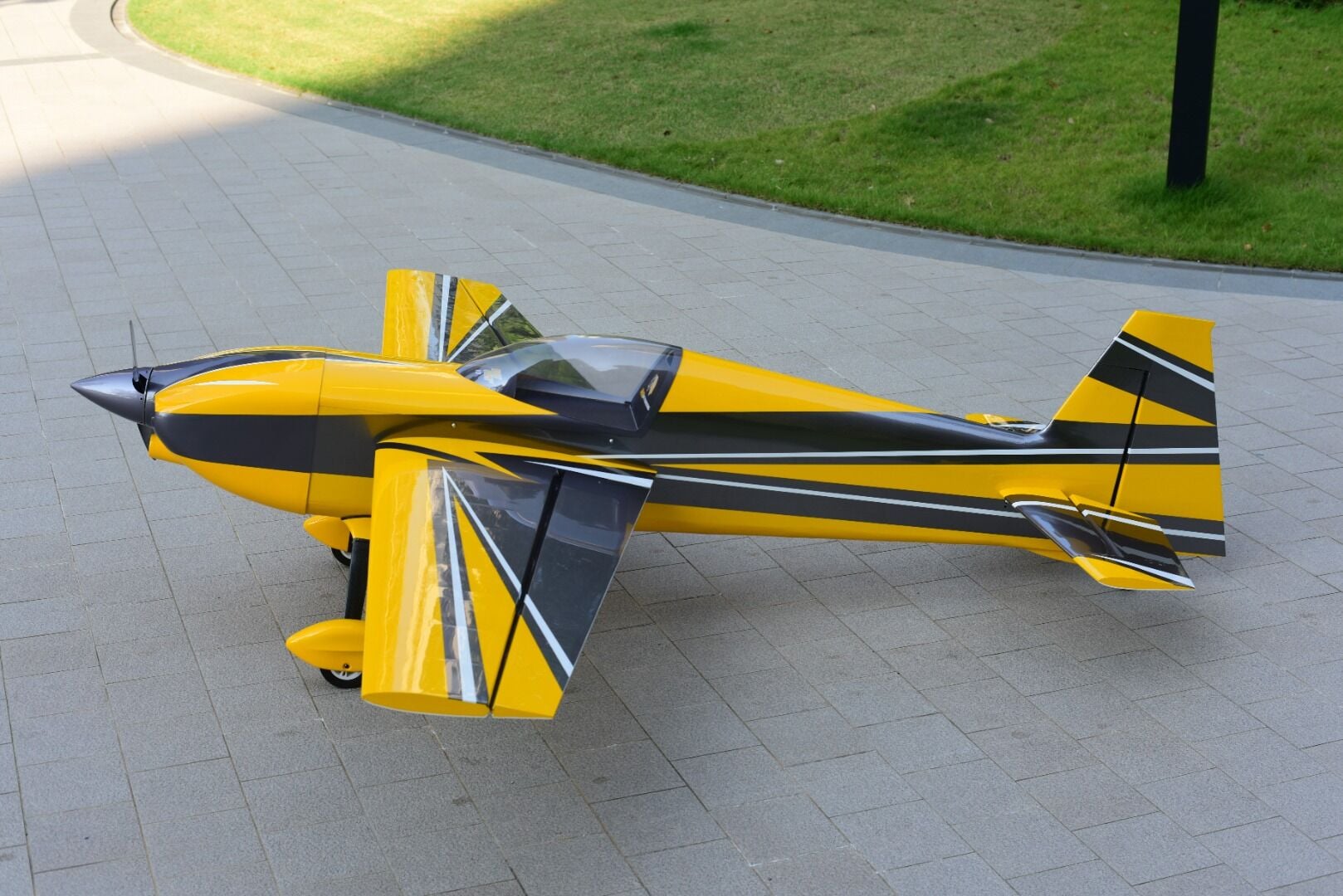

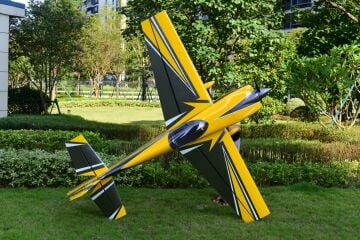

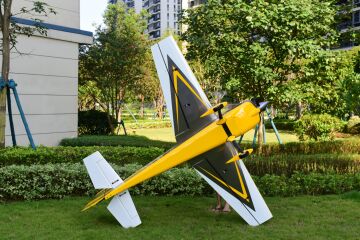

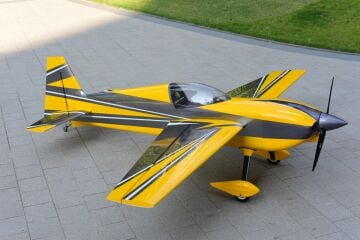

EDGE 540 116'' 2.95M GRİ SARI BEYAZ

ProductInformation

1. Advancedconstruction for today's demanding pilots

2. PATENTEDquick assembly canopy, wings and elevator systems EXCLUSIVE to Skywing

3. Fastassembly time with pre-hinged and pre-sealed ailerons and elevators

4. Factoryassembled detailed canopy interior

5. Removablerudder with single pin assembly

6. Incrediblevalue NOW WITH MATCHING SPINNER, fuel tank, fuel line, fuel and vent dot,  wingand stab bags, as well as preinstalled high quality extensions.

7. cowl prefabricated cooling baffle

REQUIRED HARDWARE:

1. 100-120cc Gas Engine*1

2. Carbon Propeller (27x11, 28x10, 29x9)*1

3. Digital High Speed Throttle Servo*1

4. Digital High Torque Metal Gear Servos (38kg or above)*7-8

5. Arms - tapped for 3mm hardware (aileronsx 4/1.75",elevator x 2/1.75",rudder x 1 or2/1.75")*7-8

6. Extensions - throttle(450MM)*1

7. Extensions - outer ailerons(600mm/2pcs 100mm/2pcs)*4

8. Dual Servo Harnesses - easy assembly at the field Receiver, Battery Packs, Switches, ETC.

Test device（工厂测试设备）：

【engine 发动机】：gp123

【Servos 伺服】：Elevator 升降 Aileron 副翼( CLI380*6) Rudder 方向 (CLI520*1)   Throttle油门（CLI130*1)

【Propellor 桨】：28 *10

【power supply 电源】：2S-3300mah *2

【servo arm 摇臂】：Elevator 升降=1.75" *2    Aileron 副翼=1.5" *4 Rudder 方向=1.75" *1
