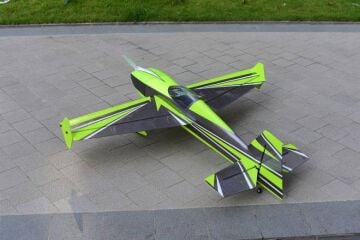

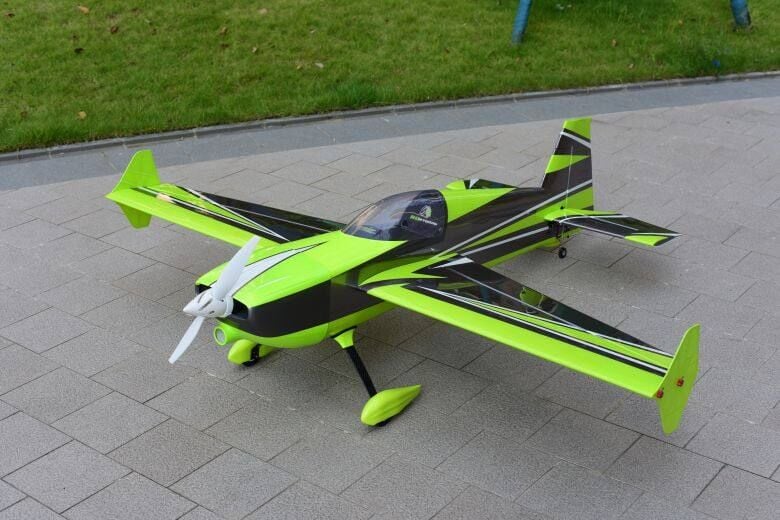

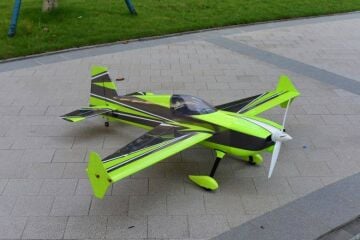

EDGE 540 67'' 1.7M GRİ YEŞİL BEYAZ

Product Information
1) Advanced construction for today's demanding pilots

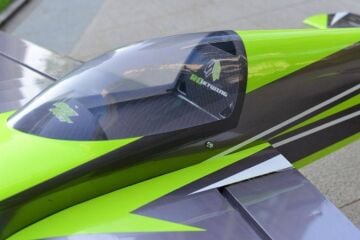

2）Factory assembled detailed canopy interior

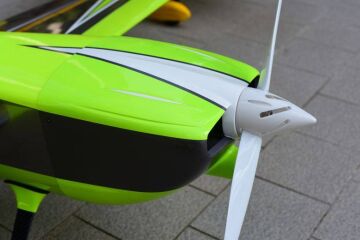

3）Pre-baffled cowling for maximum motor cooling
4）Fast assembly time with pre-hinged and pre-sealed ailerons and elevators
5）preinstalled high quality extensions.
6）Incredible value with carbon fiber wing tube, landing gear and tailwheel assembly.
7）Wing bag and electric spinner - INCLUDED
8）Skwying's PATENTED rapid assembly wing design!

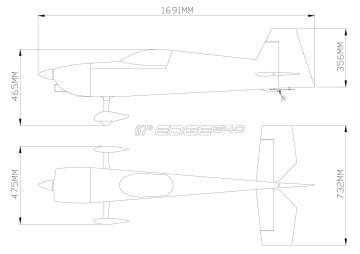

PRODUCT DATA(产品数据)

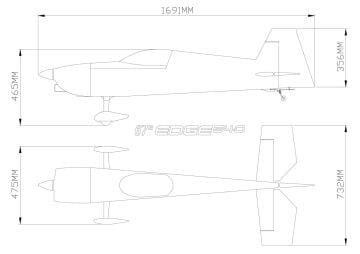

Wingspan（翼展）;   67 in./1701mm
Lenqth（机身长）; 66 in./1681mm
Wing Area（翼面积） ;891.25 sq in/57.5dm²
Weight（飞行重量）; 油Gasoline settings; 8.05 lbs/3.65kg     电Electric setting:8.05 lbs/3.65kg（6S/4500mah)

Packaging Size/ Weight（包装尺寸）
134*51*28cm/7.3kg

Test device（工厂测试设备）：

【engine 发动机】：DLE20RA

【Servos 伺服】：Elevator 升降 Aileron 副翼 Rudder 方向  （THETA  THM989*4) Throttle油门（CLI-310*1)

【Propellor 桨】：17 *6

【power supply 电源】：2S-2200mah *1

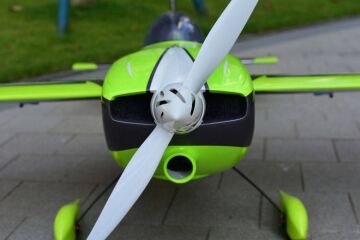

【spinner 整流罩】：2.5”（63mm)

【servo arm 摇臂】： Aileron 副翼  =1.25" *2      Elevator 升降   Rudder 方向=1.5" *2

Test device（工厂测试设备）：

【Motor 电机】：dualsky GA2000R-KV450

【ESC 电调】：Hobbywing Platinum 100A  V3

【Servos 伺服】：THETA  THM989*4pcs

【Propellor 桨】：18*10

【power supply 电源】：6S-4500-5000mah *1

【spinner 整流罩】：2.5”（63mm)

【servo arm 摇臂】：Aileron 副翼  =1.25" *2      Elevator 升降   Rudder 方向=1.5" *2

REQUIRED:
1) 20cc Gas Engine*1pcs
2) Carbon Propeller (18x10)*1pcs
3) Digital High Speed Throttle Servo*1pcs
4) Digital High Torque Metal Gear Servos  35*15mm/18kg*4pcs
5) 1.25"-1.5" Arms - tapped for 3mm hardware (ailerons-1.25 x 2, elevator-1.5" x 1 rudder-1.5" x 1)
