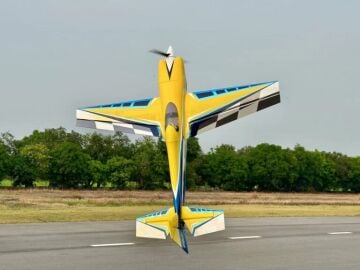

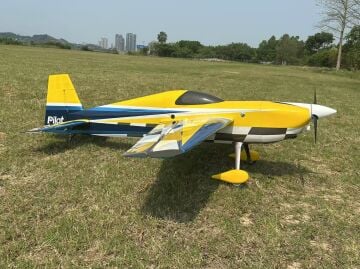

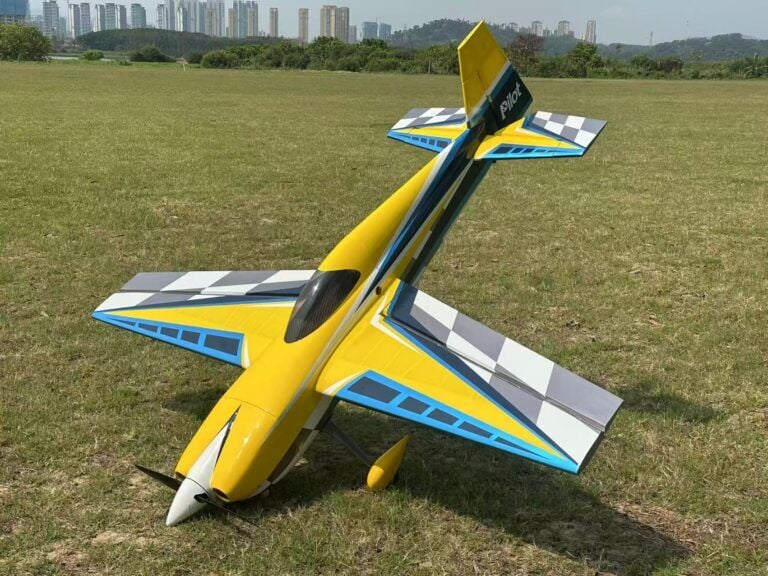

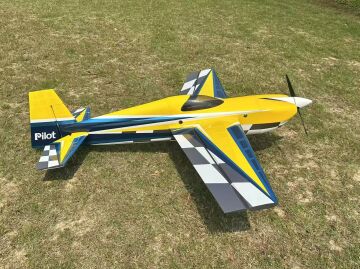

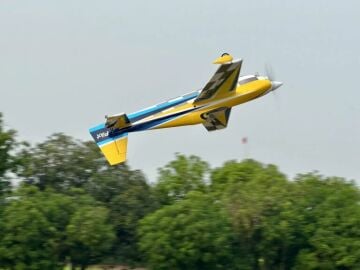

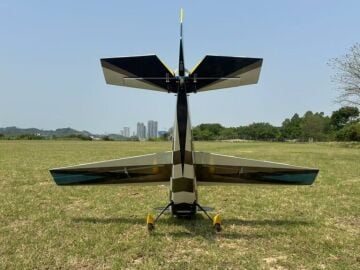

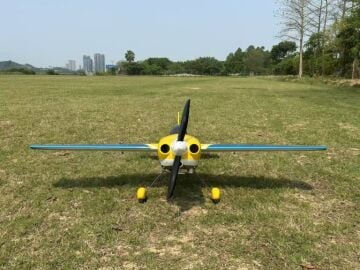

EDGE 540 85'' 2.15M V2 SARI MAVİ GRİ BEYAZ
Net Alış Fiyatınız
1.150,00 USD + KDVNet Alış Fiyatınız
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Extension wire lengths:
Throttle:
15cm
Each aileron:
20cm
( to reach receiver direct)
Each elevator:
115cm
Rudder:
115cm
(when using direct – if installing pull pull, no required extension)
CENTER OF GRAVITY:
144mm
Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
FULL Build manual:
Pilot-RC already surprised everyone with a new level of precision and with our extremely popular ,ExtraNG ,Slick . We have now taken all these great features and grown them into our new EDGE V3.The Pilot-RC EDGE 540 V3 , as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design in 01 color scheme and Ryu Sintuphrom signature 02 color scheme both are great design color look great as usual
Pilot-RC Edge 540 V3 50-60cc Designed by the design team of Pilot-RC with high experience with rc airframe , the Edge 540 V3 has the modern aesthetics of a full-size V3 EDGE. outstanding performance capabilities. The design is a full base on the Edge 540 V3 which has a back of fueslage unique design and one of the best shape EDGE 540 ever, not only modern looking but also has a great aerodynamic in the sky and, ensuring an authentic, the Edge 540 V3 50-60cc is a true and high performer design for anybody who has old 50cc-60cc single and is outstanding in a variety of flying styles like 120cc size.
Specifications:
| Model: | EDGE 540 V3- 85″ |
| Wingspan: | 85″ (2.16mm) |
| Length: | 84.6″ (2.15mm) with 4” spinner |
| Wing area: | 1,376 “² (8,880 cm²) |
| Weight: | 16.9lbs (7.7kg) dry weight |
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilizer(no need tools require)
NEW! Patented quick assembly system for canopy.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
Removable wings and stabs
Laser engraved motor mounting position
Easy canister installation due to open construction
Included hardware:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner,4″
CRASH KITS AVAILABLE FOR THIS MODEL:
- Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
- Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
- Please note that additional or alternative spare wood outside of the above Packs is not available to order.
