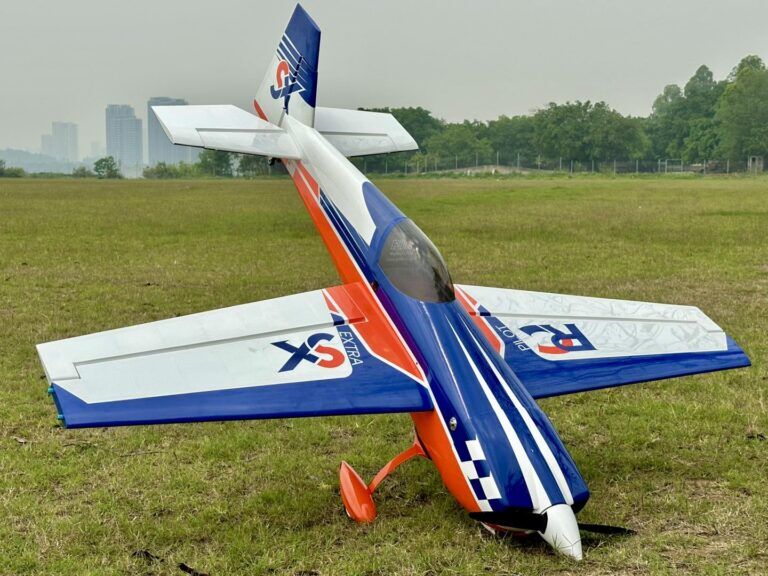

EKSTRA 330SX 75'' 1.9M KIRMIZI MAVİ BEYAZ

FEATURES:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings, stabilizer and SFG
• NEW! Patented quick assembly system for canopy.
• Film covering applied over a Genuine German Oracover (Ultracote) base
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
• Removable wings and NEW quick release for stabs no tools require
• Laser engraved motor mounting position
• Easy canister installation due to open construction

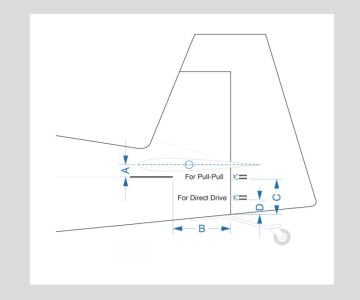

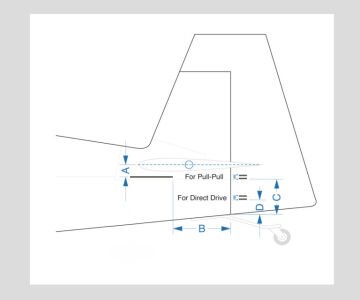

• Pull push and Pull pull system for Rudder servo

Included hardware:

• Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
• “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axles and wheel pants
• Pre-prepared pushrods with ball links
• Matching carbon spinner, 3.5″

Required hardware:

Motor: 30-40cc or equivalent electric

Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Pilot-Rc recommended hardware:

• Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v) for aileron and rudder
• Elevator Servo : https://pilot-rc.com/pw-21ah-21kg-1-2-alu-arm/
• Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
• Wingbags: Pilot-RC wingbags

Extension wire lengths:

Each aileron:
15cm
(to reach receiver direct)

Each elevator:
65cm

Rudder:
pull pull no extenstion required

CENTER OF GRAVITY:

128mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

FULL Build manual:
