HEEWING KANAT SERİSİ F01 - PNP

HEEWING KANAT SERİSİ F01 - PNP

Stok Kodu
:
HW-F01-PNP
Kategori
MODEL UÇAKLAR
Marka
HEEWING
Garanti Süresi
24 Ay
Fiyat
109,00 USD + KDV
ÜRÜN ÖZELLİKLERİ
ÜRÜNÜN HAKKINDA SORU SOR
Ürününüzün garantisinin devamlılığı için periyodik bakımları yapıldıktan sonra bu formun doldurularak tarafımıza gönderilip online kaydı alınmalıdır.

*
*
*
*
*
*
TAVSİYE ET
Liste Fiyatı

Net Alış Fiyatınız

109,00 USD + KDV

Net Alış Fiyatınız

6.569,86 TL
KDV DAHİL
Ödeme Seçenekleri
+ taksit kampanyasına Ticari Card'lar ve Flexi Card’lar dahil değildir.
6.569,86 TL
KDV DAHİL
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
ÜRÜN TEKNİK BİLGİLERİ
ÜRÜN TEKNİK BİLGİLERİ

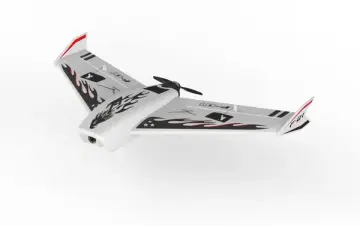

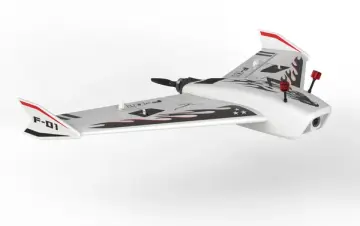

HEE WING F-01 DELTA WING AIRPLANE

F01 is for the Speed Hunter! Proper aerodynamic design with wind tunnel testing. Suitable for analog and digital FPV speed flying!
Features
  • Detachable camera plug for FPV flying or 3rd person view flying
  • Built in Carbon Fiber Rod in the main wing
  • Large internal for electronics
  • Hatch secured with 4 powerful magnets
  • New wingtip design allows for vertical take off
  • Supports horizontal and vertical battery mounting
  • Lens protector provided to protect the FPV camera lens

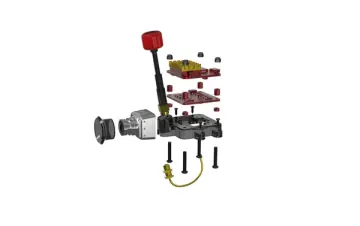

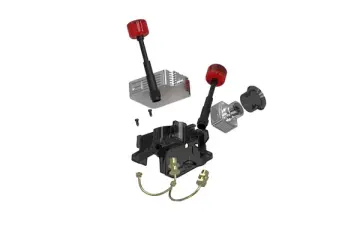

  • Mounting designed for Analog & DJI Digital Air Unit
Specifications
Parametre Değer / Özellik
Product Name HEE WING F-01 Delta Wing Airplane
Material EPP / ABS / Carbon Fiber
Airplane Dimension Wingspan 690mm, Height:88mm, Length:415mm
Kit Weight 150g / 190g (epp-20)
All-up Weight (AUW) 350 g~ 850 g
Min speed < 27km/h
Carbon Fiber Dimension 4.7mm x 3.2mm x 400mm (Outer x Inner x Length, Wing tandem rod)
7mm x 5mm x 170mm (Outer x Inner x Length, Wing Built-in reinforcement rods)
5mm x 1mm x 220mm (Width x Thickness x Length, Wing stiffener)

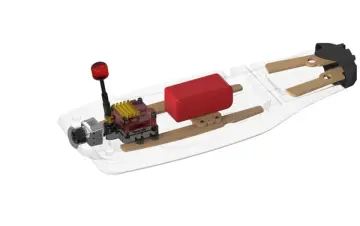

Fuselage space Battery compartment : 175mmx75mmx 55mm (Max Dimension)
ESC compartment: 70mmx38mmx20mm (Max Dimension)
Camera: 20mmx21mmx30mm (Max Dimension)
Camera guard / Lens protector Outer 17.5mm, Inner 14mm/15mm, Height 12mm, Material: ABS
Note During high-speed flight, you should install lens cover to prevent excessive in flow air from blowing away the hatch. (* when flying high speed, install the camera plug to prevent air pressure from popping the hatch)

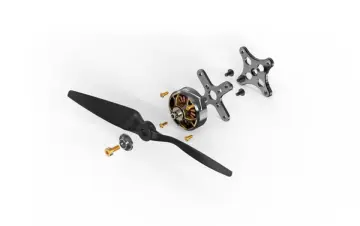

Motor FX-2207-1980KV / FX-2207 1960KV BL Motor
ESC FX-25A
Battery 2~4s (2-4S 1500-3500mAh or 6S 1300-1550mAh)
Propeller 5*5E/6*4e
Servo Metal Digital 9g / HEE WING M32 digital metal gear servo

HEE WING T2 CRUZA VTOL - PNP

F405 stabilizer installed (DENGELEYİCİ MONTAJLIDIR)
Introducing the T2 Cruza VTOL PNP - pre-assembled with ease of assembly in mind. In less than a minute, attach your own remote control and battery for an instant flight experience. With vertical take-off, enjoy a carefree and thrilling flying adventure.
Specifications
Parametre Değer / Özellik
Product Name T2 Cruza VTOL PNP
Wingspan 1200mm
Length 1110mm
Motor 3110 x 3 (2x FX-3110_680KV Tilt Motor, 1x FX-3110_680KV Rear Motor)
ESC HEEWING 6S BLS x 3 (3x FX-25A ESC)
Servo 4x HEEWING M32 Metal Digital Servo
Tilt Servo 2x HEEWING V95-S Metal Digital Servo
Propeller 3x 1060 Glass Fiber Propellers
Takeoff Weight 2000g ~ 3500g
Battery Connector XT60 (Default)
Flight Time 15 ~ 20 mins
Note Keep altitude under 50 meters and avoid Beyond Visual Line of Sight (BVLOS) flight. Please refer to factory settings requirements. Some dual Type-C cables may prevent computer detection of the stabilizer; use Type-A to Type-C cables instead.
What's included
  • 1x T2 VTOL - PNP
  • 2x Preinstalled FX-3110_680KV Tilt Motor
  • 1x Preinstalled FX-3110_680KV Rear Motor
  • 3x Preinstalled FX-25A ESC (HEEWING 6S BLS)
  • 4x Preinstalled M-32 MG Metal Gear Servo
  • 2x Preinstalled V95S Metal Gear Tilt Servo
  • 3x 1060 Glass Fiber Propellers
  • Quick Release Wiring Plug for the Main Wings
  • 1x Preinstalled FX-405 Ardupilot stabilizer
Requires your own/not included
  • Radio - Minimum 6 channels
  • Receiver - Minimum 6 channels
  • Battery : 6S 3500mAh - 7800mAh (*recommended, default XT60)
  • Charger : supports up to 6S LiPo charging
T2 PNP Description
What's included

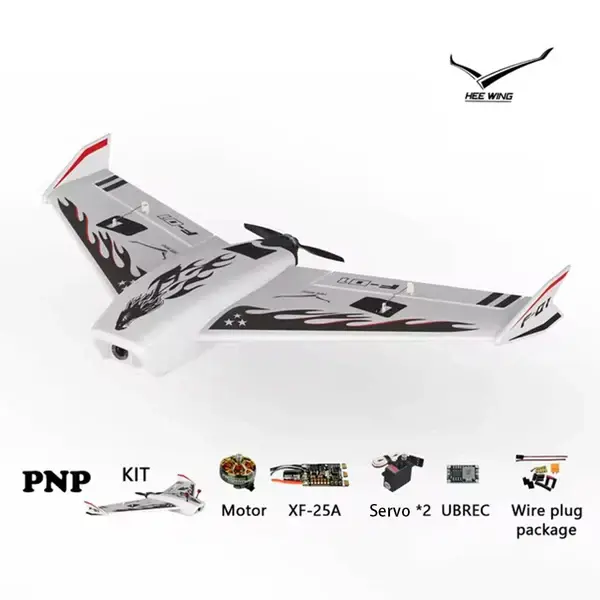

  • 1x F01 KIT
  • 1x Accessories bag with VTX mounts, battery strap & hardwares
  • 1x FX-2207 1960KV BL Motor, 5x5E propeller*2, 2x HEE WING M32 digital metal gear servo & XT60 Battery Connector. ( Electronics without pre-installed)
Requires your own/not included
  • ESC:
  • BEC:
  • Radio - Minimum 3 channels.
  • Receiver - Minimum 3 channels.
  • Battery : 2-4S 1500-3500mAh or 6S 1300-1550mAh
  • Charger : supports 2-4S or up to 6S charging
