LASER 103'' 2.61M TURUNCU GRİ BEYAZ
Net Alış Fiyatınız
1.738,00 USD + KDVNet Alış Fiyatınız
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Time for a change! Pilot-RC has broken all the molds with this one.
The Laser has been fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!
in 2023 we proud to present NEW LASER V3” 103”
Pilot-RC are non-stop development get feedback and listen from everyone both high level pilot and normal level pilot, for balance charactoristic of performance on this airframe, we upgrade everything even better aerodynamic shape of plane and new canopy look more modern shape as I say it is V3 and new wing design for roll more smooth more precise and still agile. also upgrade some structure for more lighter and improve quick release wing,canopy,and stabilizer for more convenient and reliable
Specifications:
| Model: | Laser – 35% |
| Wingspan: | 101.8″ (2.587mm) |
| Length: | 99″ (2.514mm) with 5″ spinner |
| Wing area: | 1,771 “² (11,430 cm²) |
| Weight: | 26.35lbs (11.75kg) |

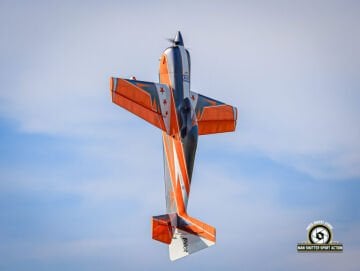

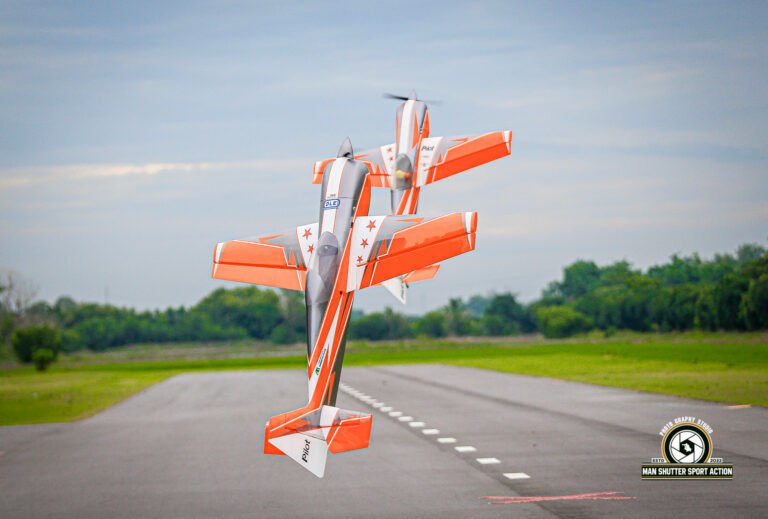

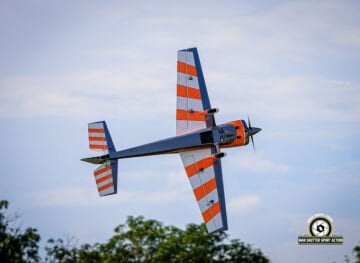

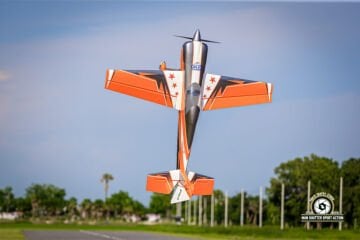

GALLERY:
Current version of laser 103″ V3
New Laser V3 what is changed from V2 ?
1. New Wing design improved Aileron for more precise and less drag in tip wing
2.Update Fueslage about alignment and Canopy for more smooth aerodynamic.
3.Additional Carbon plate on quick release Canopy for more nice look and fix loss covering problem
4. We change Landing gear to be 2 piece and hide landing gear for more nicely and fix often problem
about loss covering. now problem about loss covering will not happen anymore.
5.New System quick release stabilizer
6.add some detail on Cowl and change spinner from 4.5” to 5”
7. improve some structure for more strong and lighter.
8. change Cowling from cover fueslage to be paste on firewall
9. add Carbon plate for cooling Canister in the bottom of fueslage.
** this LASER V3 whole design is not base from scale Laser 200
only cowl is base from Laser 230.
all whole design is base from our pilot Laser V2
Just edit some curve of canopy for less drag and
we design this rc plane for high performance 3D charactoristic.
seen in these pictures:
FEATURES:
- NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
- Genuine German Oracover (Ultracote) covering
- Highly prefabricated, experienced builders can have air ready in under a day
- Pre-installed hinges (glued and pinned)
- Internally mounted cowling – so no external screws exposed
- Includes cooling baffles
- Easy canister installation due to open construction
- Removable rudder (as well as removable wings and stabs)
- Laser engraved motor mounting position
- Push-Pull system for Rudder servos
Included hardware:
- Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
- Pre-installed hinges and pre-mounted canopy
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Wheels, axels and wheel pants
- Pre-prepared pull-pull wires and pushrods with ball links
- Matching carbon spinner, 5″
CRASH KITS AVAILABLE FOR THIS MODEL:
- Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
- Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
- Please note that additional or alternative spare wood outside of the above Packs is not available to order.
Required hardware:
Motor: 100-130cc or equivalent electric
Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
Pilot-Rc recommended hardware:
- Servos: Pilot-Rc PW48AH (48Kg – 0,10s at 8,4v)
- Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
- Wingbags: Pilot-RC wingbags
Extension wire lengths:
Throttle:
40cm
Each aileron:
25cm + 75cm
(nearest servo and furthest servo – to reach receiver direct)
Each elevator:
150cm
Rudder:
140cm

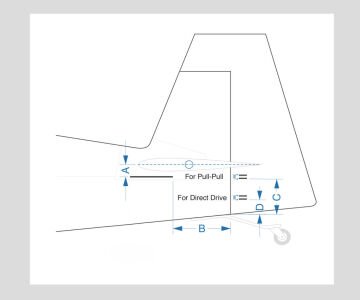

(when using direct – if installing pull pull, no required extension)
CENTER OF GRAVITY:
194mm
Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
