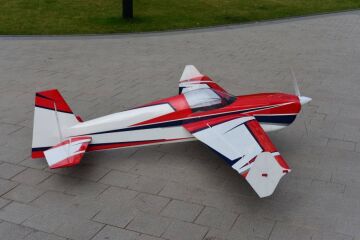

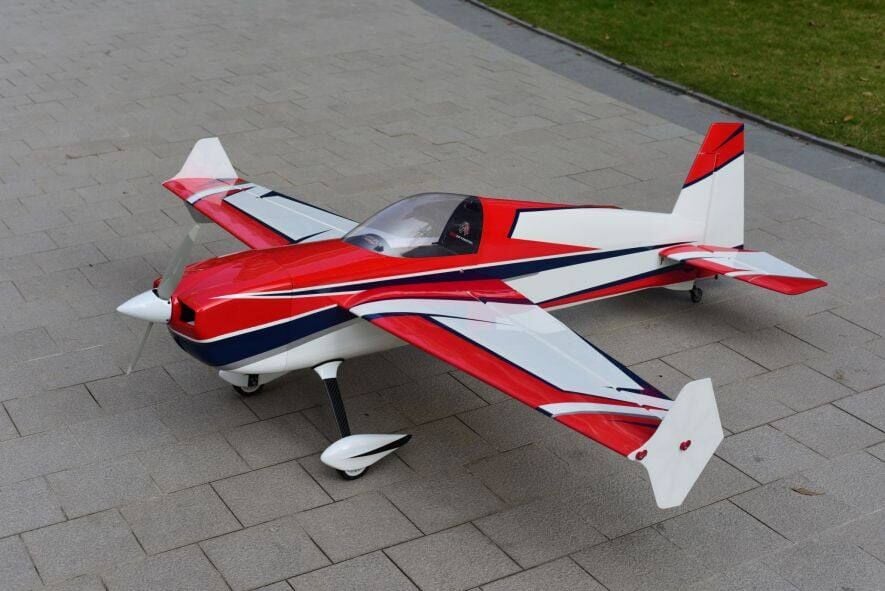

LASER 73'' 1.85M BEYAZ KIRMIZI MAVİ

Product Information

1)Advanced construction for today's demanding pilots
2) PATENTED quick assembly canopy, wings and elevator systems EXCLUSIVE to Skywing
3) Fast assembly time with pre-hinged and pre-sealed ailerons and elevators
4) Factory assembled detailed canopy interior

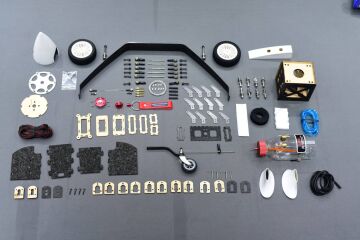

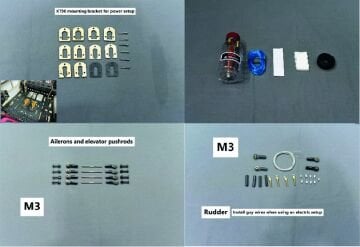

5) Incredible value NOW WITH MATCHING SPINNER, fuel tank, fuel line, fuel and vent dot, wing and stab bags, as well as preinstalled high quality extensions.

PRODUCT DATA(产品数据)

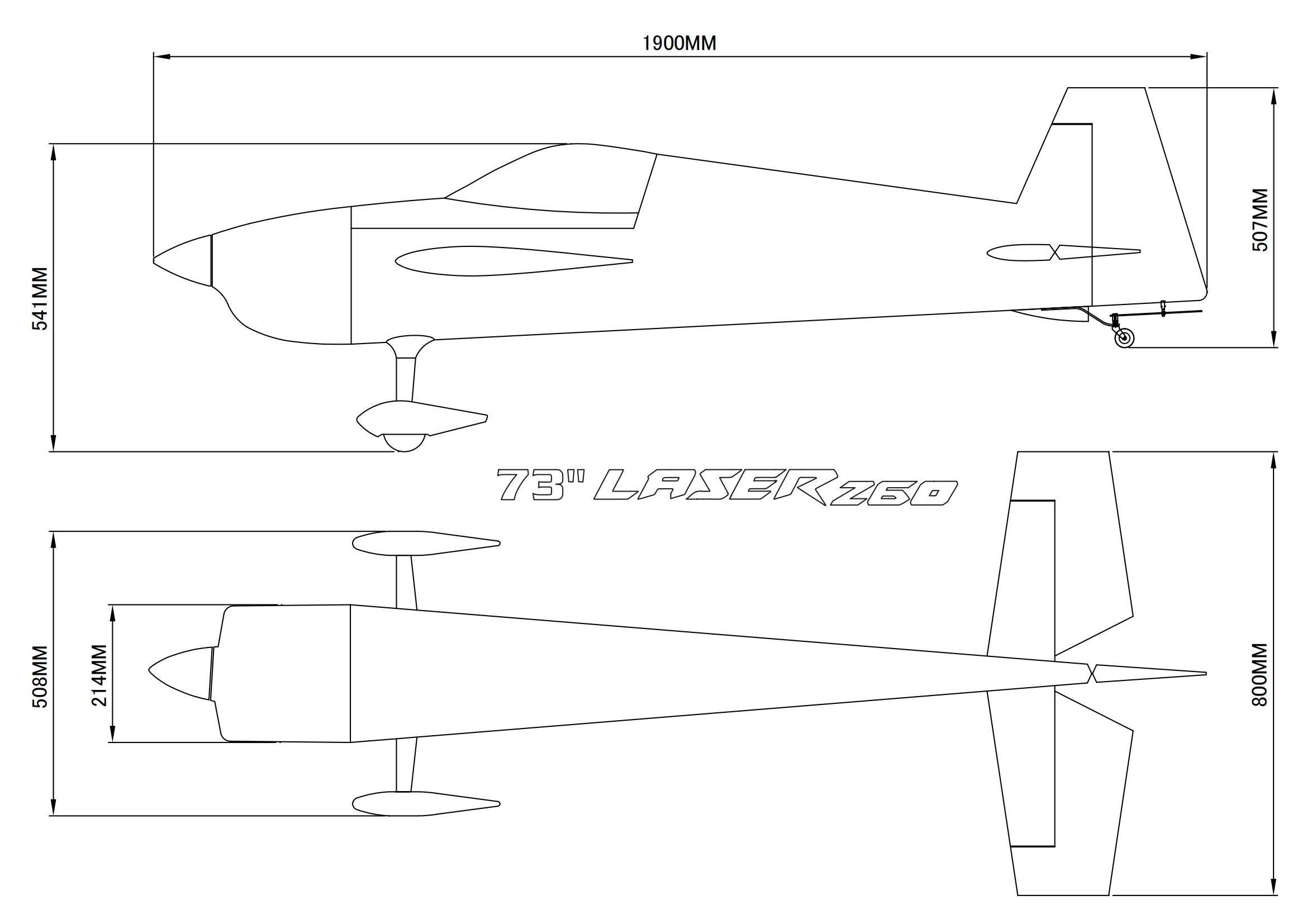

Wingspan（翼展）;    73in./1850mm
Lenqth（机身长）; 74.8in./1900mm
Wing Area（翼面积） ; 1046.25sq in/67.5dm²
Weight（飞行重量）; 油Gasoline settings; 11.9 lbs/5.4kg     电Electric setting:11.02 lbs/5.1kg（6S/3700mah*2pcs)

Packaging Size（包装尺寸）;148*57*31cm

Weight（包装重量）;11kg

Test device（工厂测试设备）：

【engine 发动机】：GP38

【Servos 伺服】：Elevator 升降(sw070hv*2）  Aileron 副翼 Rudder 方向（sw120hv*3)

【Propellor 桨】：19 *8

【power supply 电源】：2S-2200mah *1

【spinner 整流罩】：3”（76mm)

【servo arm 摇臂】：Elevator 升降=1.5" *2    Aileron 副翼=1.5" *2 Rudder 方向=3.0" *1 dual servo arm 中置双向

Test device（工厂测试设备）：

【Motor 电机】：dualsky GA3500R-KV200

【ESC 电调】：Hobbywing Flyfun-110A-HV-SBEC-V5

【Servos 伺服】：Elevator 升降(sw070hv*2）  Aileron 副翼 Rudder 方向（sw120hv*3)

【Propellor 桨】：20*10

【power supply 电源】：6S-3700mah *2

【spinner 整流罩】：3”（76mm)

【servo arm 摇臂】：Elevator 升降=1.5" *2    Aileron 副翼=1.5" *2 Rudder 方向=3.0"(dual servo arm 中置双向 *1）

REQUIRED:
1) 30-40cc Gas Engine*1pcs
2) Carbon Propeller (20x8, 20x9, 20x10)*1pcs
3) Digital High Speed Throttle Servo*1pcs
4) Digital High Torque Metal Gear Servos 40*20mm/25kg*3pcs   35*15mm/10kg*2pcs
5) 6" Extensions - aileron Throttle servos*3pcs
6) 1.5" Arms - tapped for 3mm hardware (ailerons x 2, elevator x 2)
7) 3" Double sided arm - tapped for 3mm hardware (rudder in push/pull config.)
