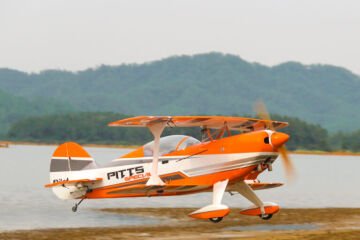

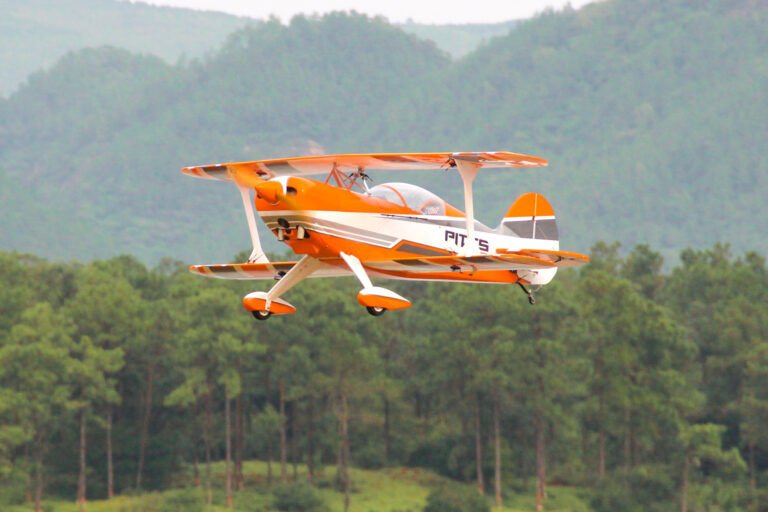

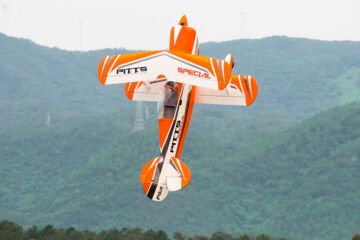

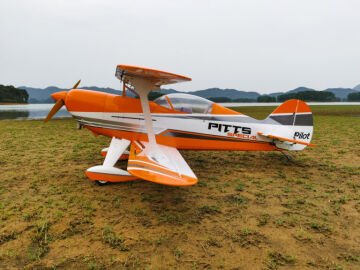

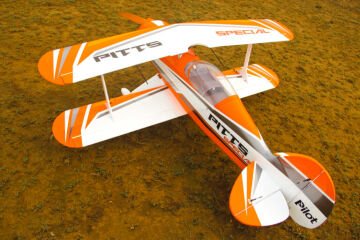

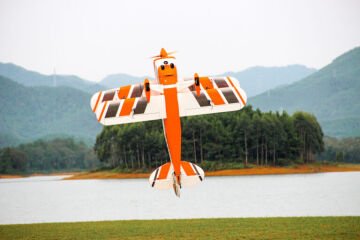

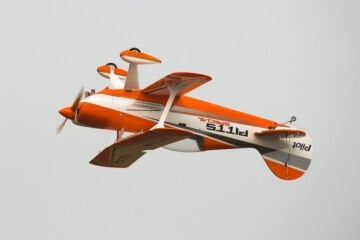

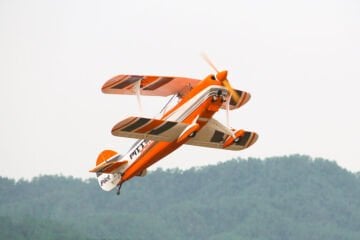

PITTS S2B 73'' 1.85M TURUNCU GRİ BEYAZ MU-PITTS-S2B-73-01
Net Alış Fiyatınız
1.300,00 USD + KDVNet Alış Fiyatınız
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Bring on the fun, with what is probably the best looking biplane out there. Fear not about long setup times of traditional biplanes, Pilot-RC’s innovative and patented systems allow you to have the model completely put together in under 5 minutes, to then unleash the acrobatic and 3D monster that our Pitts.

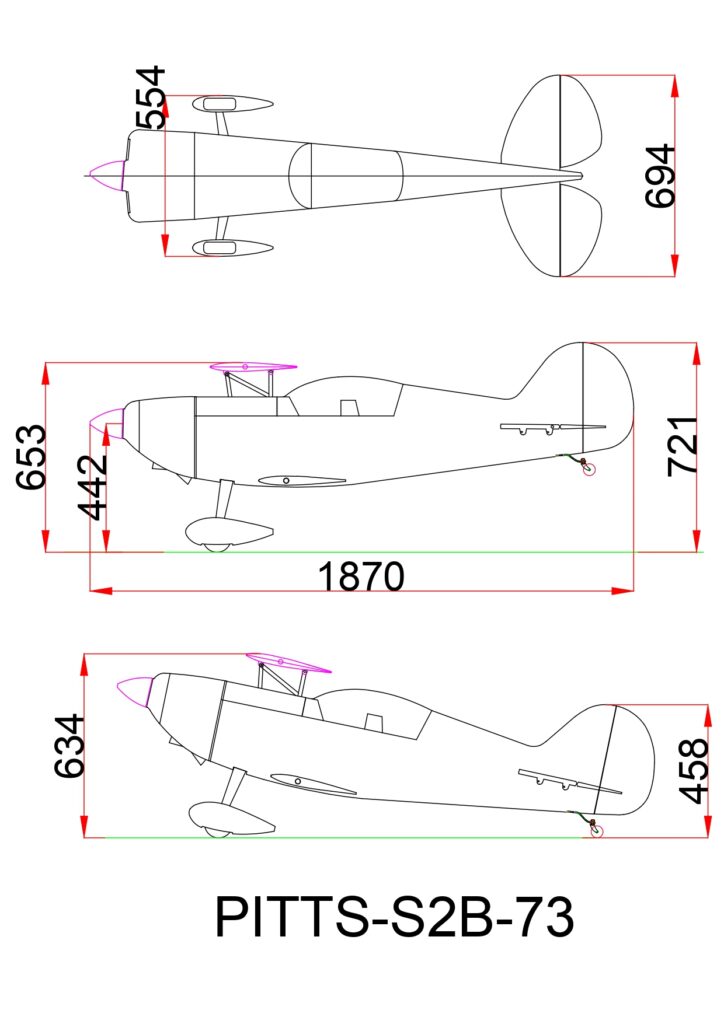

Specifications:
| Model: | Pitts S2B |
| Wingspan: | 73″ (1,867mm) |
| Length: | 71″ (1,760mm) |
| Wing area: | 1,720 “² (1,109 cm²) |
| Weight: | 20.8lbs (9.7kg) |
Features:
- NEW! Pilot-RC new and patented quick release system for fast wing mounting at the field.
- NEW! Pilot-RC new quick release system for wing and stabilizer tension wires.
- Special Pilot-RC no screw canopy. Quick release with new security latch design.
- Strong but light, specially developed for precision acrobatic and extreme 3D flying
- Highly prefabricated, experienced builders can have air ready in under a day
- Pre-installed hinges (glued and pinned)
- Internally mounted cowling – so no external screws exposed
- Removable wings , wing stuts and stabs.
- Laser engraved motor mounting position
Included hardware:
- Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
- Pre-installed hinges and pre-mounted canopy
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Wheels, axels and wheel pants
- Pre-prepared pushrods with ball links
- Matching carbon spinner, 4″
Required hardware
Motor: 50-76cc
Servos: 7-8 high torque plus throttle // Uses x1 per aileron (total x4), x1 per elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories…
Recommended accessories
Pilot-RC wing bags. Optional extra, not included in the kit.
A: 290mm – B: 115mm – C: 328 – D: 107mm – E: 153mm
Extension wire lengths:
Throttle:
35cm
Upper wing:
No extension required
Wing strut:
(x2) 46cm
Lower wing:
(x2) For wing servo: 12cm
(x2) To wing strut: 55cm
Elevator:
(x2) 50cm
Rudder:
For Pull-Pull 10cm
CENTER OF GRAVITY:
175mm
Measured back from leading edge of the top wing at the fuselage.
