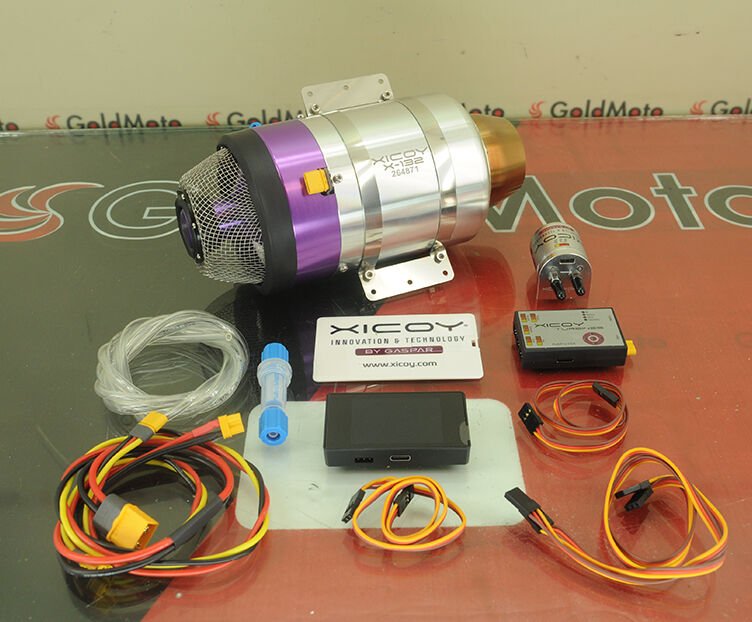

TURBOJET MOTOR XiCOY 132N
Stok Kodu
:
MU-X132
Ürününüzün garantisinin devamlılığı için periyodik bakımları yapıldıktan sonra bu formun doldurularak tarafımıza gönderilip online kaydı alınmalıdır.
Liste Fiyatı
Net Alış Fiyatınız
0,00 USD + KDVNet Alış Fiyatınız
0,00 TL
KDV DAHİL
Ödeme Seçenekleri
+ taksit kampanyasına Ticari Card'lar ve Flexi Card’lar dahil değildir.
0,00 TL
KDV DAHİL
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Taksit Seçenekleri
Specifications
Towards the end of the 1990's, Wren developed and set a new standard of small engine known as the MW54. This legendary engine gave a power output of 54N, with a can size of 90mm. It was smaller than the standard size of engines at the time, that where engines derived from the KJ66 design that had can sizes of around 110mm.
Over time, the power increased and many manufacturers developed engines of this 90mm can size, up to a power of 100N.
At Christmas 2020, Xicoy launched the X120, which went one step further again, achieving 120N of thrust with lower specific fuel consumption.
And now, in the summer of 2023, and after nearly 600 units of X120 engines sold, the time has come to do a full redesign of the engine internals, applying the lessons learned from engines developed over the past two years. A significant investment has been required in the manufacture of the molds for a new turbine wheel and turbine stator, plus a new compressor design, in addition to various other changes to the combustion chamber and the entire rotating assembly.
The result is a new engine of the same size and weight as the original X120, but that has a 10% increase in performance, achieving 132N with similar fuel comsumption.
The X132 has same lightweight electronics as all other Xicoy engines that allow simple installation and of course it incorporates our FlexThrust Technology giving you anywhere from 60N to 132N at the press of a button. The X132 is perfect for all those popular models that need engines in the range of 60N to 132N. Plenty of kits available to chose from that are of a affordable and practical size. Having an engine that can be used on all of them, the investment on a X132 is a perfect, long term,decision!!
Specifications
Thrust: Continuously adjustable from 60 to 132N (29.7 Lbf, 13,5Kg )
Size: 90,2mm diameter, 198mm long
Weight: 940g (2,1lb) engine, 1.040g (2,5lb) total installed weight except battery
Rpm Range: 40,000 ... 150.000 RPM
Idle Thrust: 4,9N (0,5kg/1,1Lbf)
Fuel: Kerosene + 4% oil. Diesel allowed but not reccomended. Fuels containing Biodiesel not allowed.
Fuel consumption: 360g/minute at 132N. (436ml/min)
Starter motor: High speed brush-less
Fuel pump: Digitally controlled brush-less pump

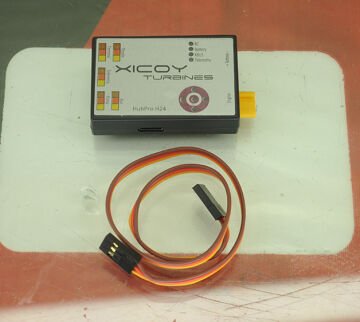

Telemetry: Jeti, FrSky, Hott, PowerBox and Futaba included, integrated in the ProHub. An optional (not included) module allows MPX and JR.
Service interval: 25 hours
Reccomended battery: 2s Lipo/2200mAh reccomended. (3s Life compatible). Battery not included
